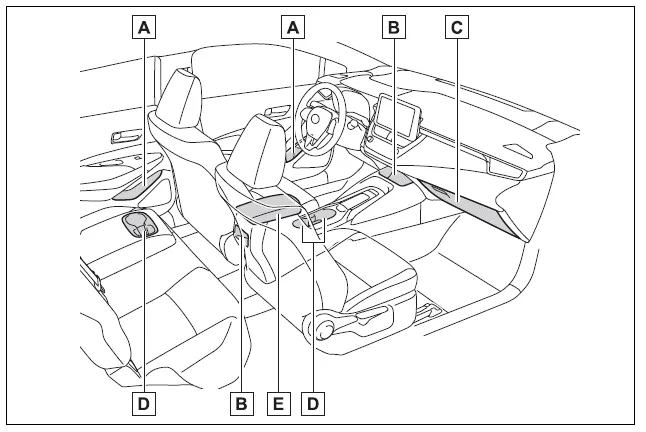

Toyota Corolla (E210): Location of the storage features

  1. Bottle holders/door pockets
  2. Open trays (if equipped)
  3. Glove box
  4. Cup holders (if equipped)
  5. Console box

WARNING

■Items that should not be left in the storage spaces

Do not leave glasses, spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high:

  • Glasses may be deformed by heat or cracked if they come into contact with other stored items.

Glove box

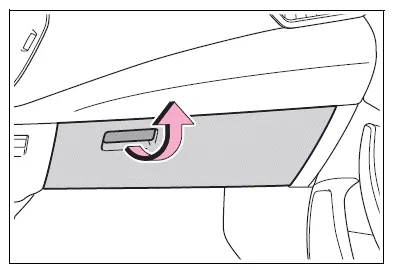

Pull up the lever to open the

Pull up the lever to open the glove box.

■Glove box light (if equipped)

The glove box light turns on when the tail lights are on.

WARNING

■Caution while driving

Keep the glove box closed. In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the open glove box or the items stored inside.
